BUILT FOR THE ROAD.
READY FOR ANYTHING.
YOUR
PERFECT FIT
The adjustable fork allows precise customization of both height and length, enabling you to tailor the riding position to your individual needs.
This ensures optimal comfort and improved bike control, making every ride more efficient and enjoyable.
ENHANCED
RIDER SIGHT

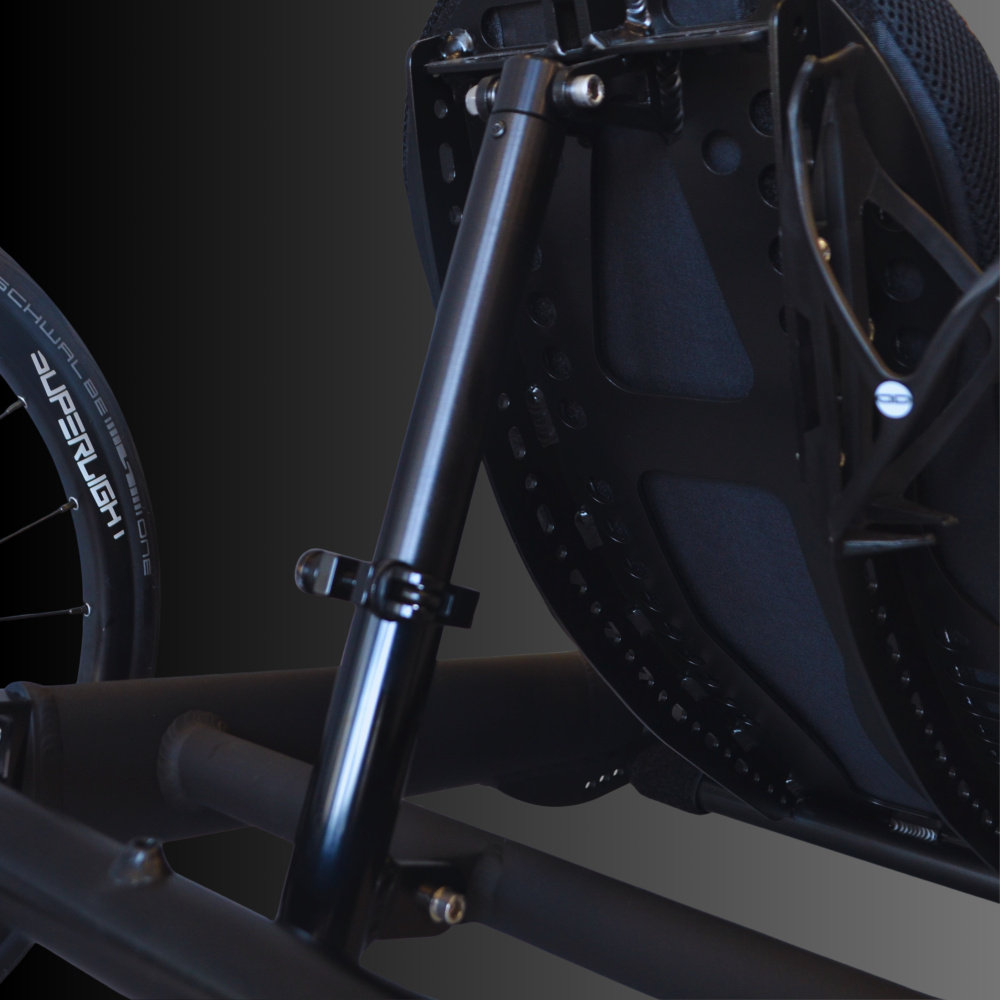

The Pro Evo comes in two setups:
a higher position for improved visibility and comfort, featuring a support post for the backrest.
.png)
PERFORMANCE
SETUP
Alternatively, the race position uses two side rods to create a more aggressive, aerodynamic posture.
HOLD
STEADY
The parking brake ensures stability during stops
and transfers, offering safety, independence
and peace of mind.

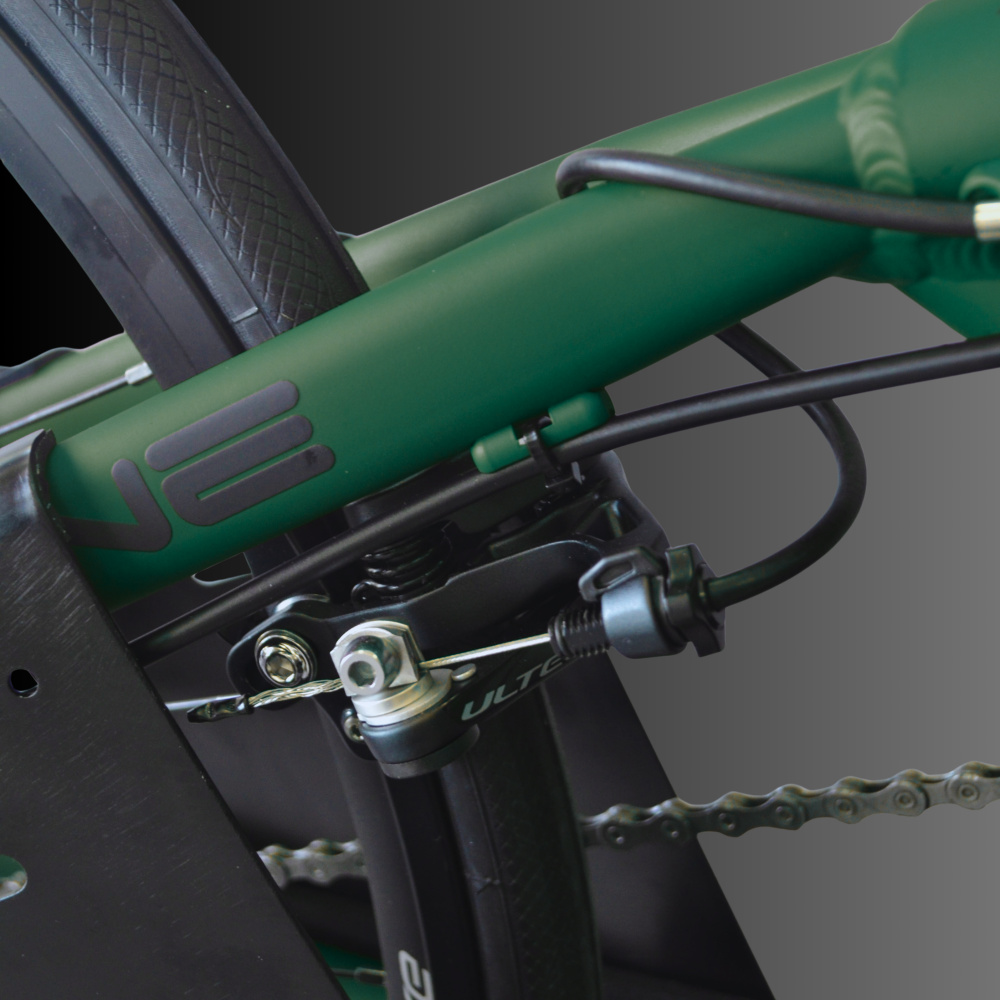

CLASSIC
CONTROL
Available as part of the configurable parking brake system: choose between rim or disc caliper based on your technical and functional requirements. The rim brake caliper for parking function is lightweight, reliable and easy to maintain.

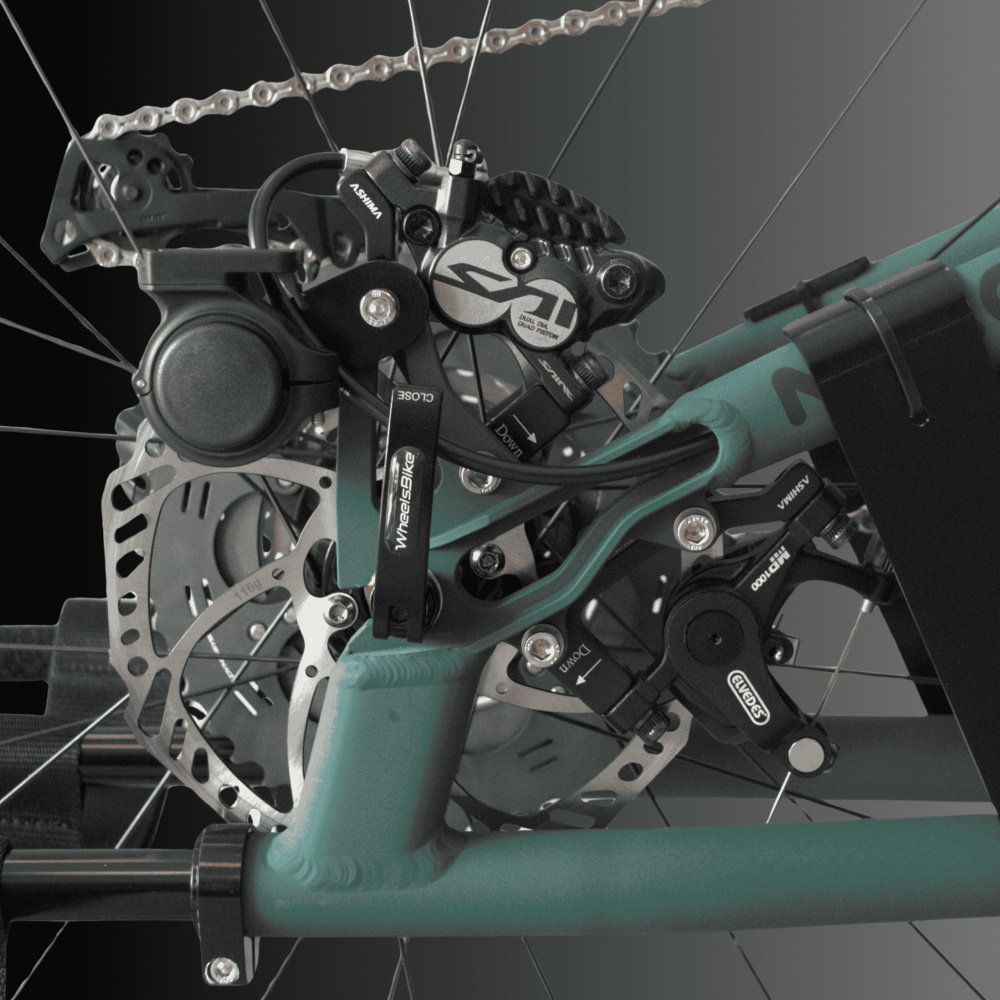

ADVANCED
ADAPTABILITY
Alternatively, the disc brake caliper provides more clearance between the aluminum tubes and,
since no bridge is needed for the rim caliper parking brake, it allows mounting wheels of both 571 and 584 sizes.
.png)
All Components
Frame
Aluminium alloy 7020
Fork
Aluminium alloy 7020, adjustable in height and length
Position
recumbent or more upright
Electronic gear options (GCE)
SRAM FORCE AXS 2x12 MAX.44
SRAM GX1 AXS 1x12
SHIMANO DEORE Di2 1x12 max 51
SHIMANO ULTEGRA Di2 2x11
SHIMANO GRX Di2 2x11
Mechanical gear options (GCM)
SHIMANO XT 2x11
Gear options for Quadriplegics
SHIMANO ULTEGRA Di2 2x11
SHIMANO GRX Di2 2x11
chin mount or elbow mounts
Front brake
Hydraulic disc brake Shimano
Parking brake
Shimano BR-R8000
Braking options for Quadriplegics
Reverse Brake
Elbow braking mounts
Wheel sizes
27,5 (584) / 27,5 (584)
27,5 (584) / 20
26 (571) / 26 (571)
26 (571) / 20
Front axle
Quick release
Rear axles
25mm
Tires
Schwalbe Pro One 25-584 650Bx25
Schwalbe Pro One 28-584 650Bx28
Vittoria Rubino Pro 571x23
Schwalbe Pro One 20
Length
cm
Wheelbase
cm
Width
cm
Width without rear wheels
cm
Height
cm
